⚙️ 200 KW Ducted Air Heater | Industrial High-Capacity Air Heating System by China Ryan
Product Overview

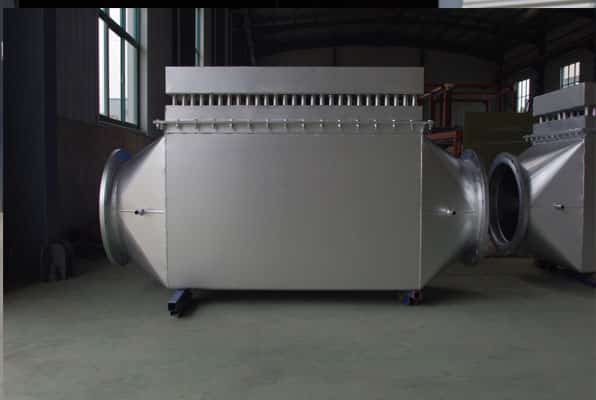

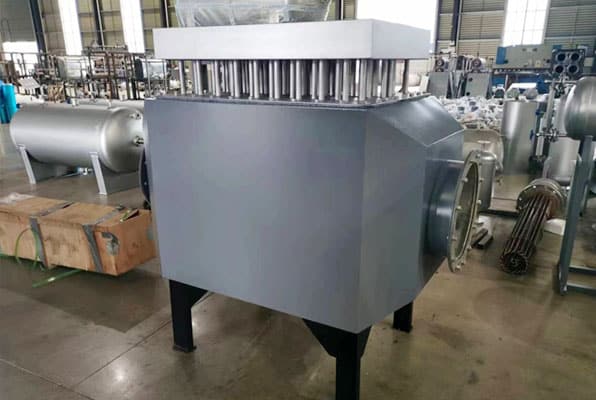

The 200 KW Ducted Air Heater is a high-performance industrial air heating system designed for integration into ventilation ducts and air handling units (AHUs). Operating at 380 V, this system features multiple tubular electric heating elements insulated with magnesium oxide (MgO), ensuring superior heat conduction, electrical safety, and long operational life.
With its compact yet powerful design, the unit delivers 200 KW of heating output, making it ideal for large-scale commercial and industrial applications that demand precise temperature control within limited installation space. Engineered for energy efficiency, quick thermal response, and durable 24/7 performance, it’s a reliable solution for HVAC systems, process heating, and industrial drying applications.
Key Benefits for Buyers
✅ High-Capacity Heating – Delivers 200 KW of output for large-scale process and air systems.
✅ Energy-Efficient Operation – Optimized design reduces power consumption and overall cost.
✅ Compact Construction – Space-saving configuration for direct duct integration.
✅ Rapid Thermal Response – Quick heat-up times ensure smooth, continuous operation.
✅ Industrial Durability – Built with robust materials for long-term, high-temperature performance.
✅ Easy Installation – Simplified mounting for new or retrofit duct systems.
✅ Customizable Options – Tailored designs available to match specific airflow and duct layouts.
Product Features
-
Power Rating: 200 KW industrial capacity
-
Input Voltage: 380 V (three-phase)
-
Heating Technology: Tubular electric elements with magnesium oxide insulation
-
Thermal Efficiency: High-efficiency energy transfer and uniform air heating
-
Heating Speed: Rapid-response element design
-
Construction: Compact, durable housing for duct installation
-
Installation: Compatible with industrial HVAC and air handling systems
-
Customization: Non-standard configurations available
Technical Specifications
| Parameter |
Specification |
| Product Name |
200 KW Ducted Air Heater |
| Power Output |
200 KW |
| Input Voltage |
380 V |
| Heating Technology |
Tubular electric heating elements |
| Insulation Material |
Magnesium oxide (MgO) powder |
| Thermal Efficiency |
High-efficiency heat transfer |
| Construction |
Compact, duct-integration design |
| Applications |
Industrial HVAC, process heating, ventilation systems |
Working Principle

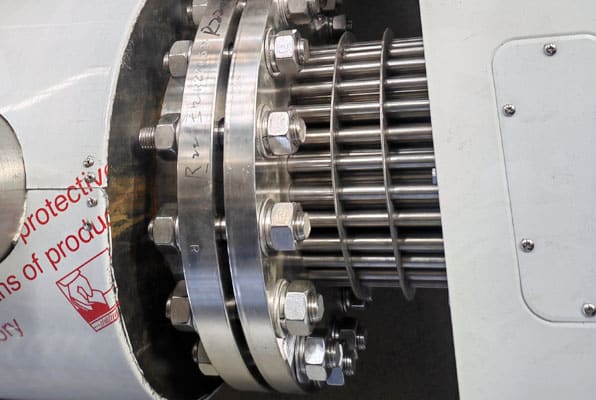

The 200 KW Ducted Air Heater utilizes tubular electric heating elements containing high-temperature resistance wires sealed in metal tubes. The internal space is packed with crystalline magnesium oxide, which acts as an electrical insulator while conducting heat efficiently.
As air passes through the duct, deflector plates ensure uniform airflow across all elements, maximizing heat transfer and ensuring consistent air temperature output. This design enables precise, stable, and safe thermal control for a wide range of industrial heating and drying processes.
Applications & Case Scenarios
-
🏭 Industrial HVAC Systems – High-capacity air heating for manufacturing plants
-
⚙️ Process Heating – Controlled thermal supply for industrial operations
-
🏢 Commercial Ventilation – Heating for large facilities and buildings
-
🧰 Manufacturing Facilities – Maintaining stable temperature in production zones
-
🏬 Warehouse Heating – Efficient space heating for large-scale environments
-
💨 Industrial Drying Systems – Thermal air for drying and curing processes
-
🌬️ Air Handling Units (AHUs) – Integration into centralized heating systems
Request a Custom Quote
Looking for a custom-built 200 KW ducted air heater for your industrial or commercial application?
Share your duct dimensions, airflow specifications, temperature requirements, and installation environment, and our engineering team will design a tailored heating solution optimized for your production needs.
