🔥 Component Preheating Furnace | Industrial Precision Heating System by China Ryan
Product Overview

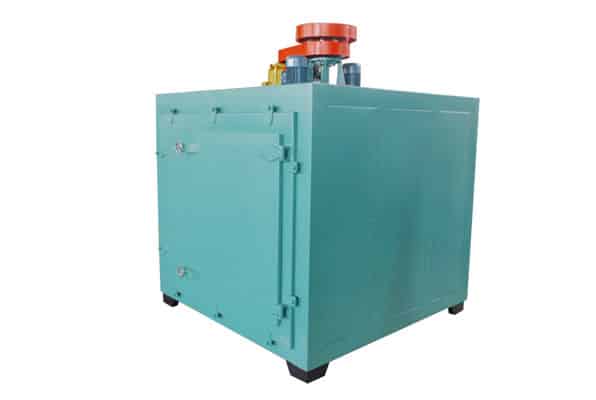

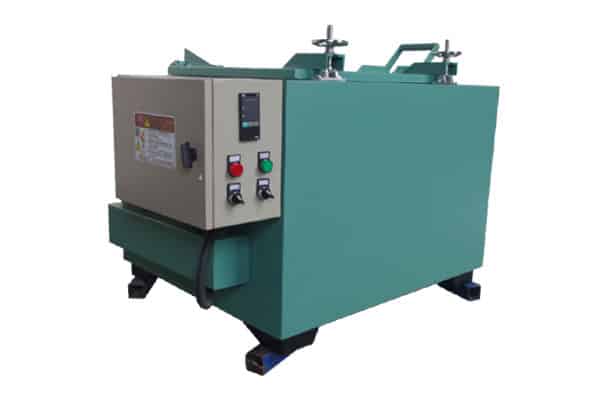

The Component Preheating Furnace is a high-precision industrial heating system designed for the controlled preheating of components before production use. Operating within a 250–350°C range, it combines electric heating elements, PID temperature regulation, and forced convection airflow to achieve stable and uniform temperature distribution.
Specifically engineered for spinnerets, spinning sets, extruder die sets, and filter assemblies, the furnace is built with a stainless steel interior and carbon steel exterior, offering outstanding durability under continuous industrial use. Each unit is custom-built to meet specific size, temperature, and process requirements.
Key Benefits for Buyers
✅ Precision Temperature Control – PID control system maintains ±1°C accuracy for consistent results.
✅ Uniform Heating Distribution – Forced air circulation eliminates cold spots and thermal variations.
✅ Customizable Design – Configurable sizes, loading options, and chamber structures for unique applications.
✅ Operational Stability – Built for continuous, reliable performance in demanding environments.
✅ Safety Assurance – Full protection systems ensure safe and stable operation.
✅ Rapid Heating Capability – Fast thermal response minimizes downtime and increases throughput.
✅ Durable Construction – Stainless steel interior withstands high-temperature industrial applications.
Product Features
-
Operating Temperature Range: 250–350°C
-
Control System: Digital PID temperature regulation
-
Heating Method: Electric heating with SSR (Solid State Relay) drive control
-
Temperature Accuracy: Maintains ±1°C consistently
-
Air Circulation: Forced convection airflow via high-efficiency blower
-
Construction: Stainless steel interior, carbon steel exterior
-
Loading Options: Front or top loading configurations
-
Customization: Fully customizable design and dimensions
Technical Specifications
| Parameter |
Specification |
| Product Name |
Component Preheating Furnace |
| Operating Temperature |
250–350°C |
| Temperature Control |
Digital PID precision control |
| Control Accuracy |
±1°C |
| Heating Method |
Electric heating |
| Drive Control |
SSR heating control |
| Air Circulation |
Forced convection blower |
| Interior Material |
Stainless steel |
| Exterior Material |
Carbon steel |
| Loading Options |
Front / Top loading available |
| Customization |
Fully customizable sizes and specifications |
Working Principle
The Component Preheating Furnace utilizes electric heating elements and a forced air convection system to achieve uniform and efficient heat transfer. A blower with a fully enclosed fan-cooled motor ensures even airflow distribution inside the chamber.
The digital PID controller maintains precise temperature stability, while SSR drive control regulates heating output for energy-efficient and consistent performance. Components are placed within the stainless steel chamber, where controlled convection heat raises them to the desired temperature level — ideal for ensuring production readiness and process consistency.
Applications & Case Scenarios
-
🧵 Spinnerets Preheating: For textile and fiber production components
-
⚙️ Extruder Die Sets: Preheating before extrusion or molding operations
-
🔩 Filter Assemblies: Thermal preparation for filtration systems
-
🏭 Manufacturing Lines: Integrated heating for production continuity
-
🧰 Industrial Maintenance: Preheating components before assembly or service
-
🧩 Custom Applications: Designed for specialized component preheating requirements
