Product Overview

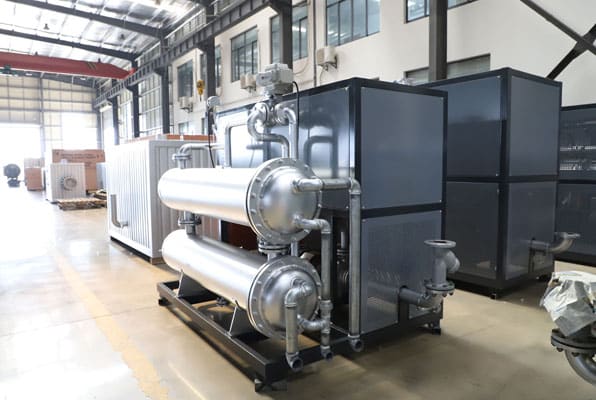

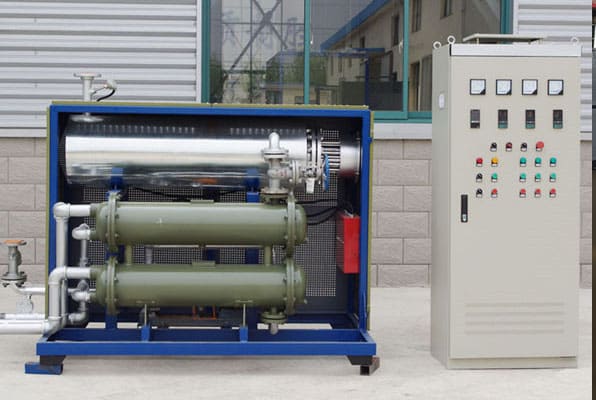

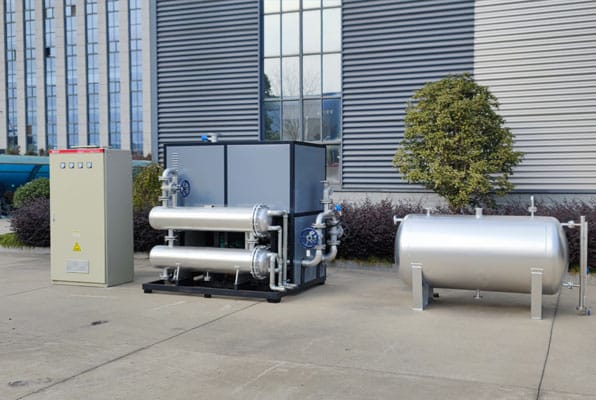

The Dual-Circuit Electrically Heated Thermal Oil Boiler features two independent heat-transfer oil circuits operating in parallel, each with dedicated electric heating elements and separate PLC/PID control systems. This innovative redundant design guarantees uninterrupted production operations, allowing continuous process heating even during maintenance cycles or load variations. The system ensures uniform heat distribution across production equipment through high-temperature circulation pumps, delivering exceptional reliability, operational flexibility, and seamless integration into existing industrial setups.

Key Benefits for Buyers

✅ Redundant Operation — Dual independent circuits ensure continuous production during maintenance
✅ Maximum Energy Efficiency — ≥98% thermal efficiency significantly reduces operating costs
✅ Precision Dual-Loop Control — Independent PLC/PID regulation with ±1°C accuracy
✅ Quick Installation — Modular skid design simplifies setup and reduces commissioning time
✅ Fully Customizable — Adaptable power, materials, and configuration to match specific site needs
✅ Enhanced Process Stability — Independent loop control maintains consistent temperature profiles
✅ Reduced Downtime — One circuit can operate while the other undergoes maintenance

Product Features

Power Range: 10–4200 kW (fully customizable)
Heating Method: Electric heating with flange/special seamless tube heaters
Control System: Dual independent PLC/PID with solid-state temperature regulation
Construction: All-welded boiler body — stainless steel or carbon steel options
Thermal Efficiency: ≥98% with advanced ceramic-fiber insulation
Temperature Accuracy: ±1°C with precision PID control
Standard Voltage: 380V/50Hz (custom configurations available)
Key Components: Dual flange heaters, centrifugal/shield pumps, precision thermistor sensors, and independent circuit piping

Technical Specifications

Working Principle

The system operates through two completely independent thermal oil circuits, each with dedicated heating elements, temperature sensors, and control systems. This parallel configuration allows either circuit to maintain process temperature independently, ensuring continuous operation during maintenance, cleaning, or unexpected component failure. The PLC-controlled system manages both circuits simultaneously while providing independent regulation and monitoring.

Applications & Industries

🏭 Continuous Process Lines — Uninterrupted operation during circuit maintenance
🛠 Large Dryers & Rollers — Independent zone control for complex heating requirements
💡 Asphalt Production — Stable tank heating with built-in redundancy
🔧 Chemical Processing — Critical processes requiring guaranteed uptime
🏗 Building Materials — Hot presses and laminating lines with precision temperature control
🔬 Food Processing — Production lines where temperature stability is critical

Request Custom Solution

Share your specific process requirements including temperature range, thermal capacity (kW), oil type, redundancy needs, and installation constraints. Our engineering team will design a tailored dual-circuit system optimized for your production reliability requirements.
