Vacuum Cleaning Furnace vs. Fluidized Bed Cleaning: Which Is Better for Polymer Removal?

When it comes to removing stubborn polymer residues from industrial components like spinnerets, filters, or die heads, two advanced thermal cleaning technologies stand out: vacuum cleaning furnaces and fluidized bed cleaning systems. Each method offers unique advantages and challenges. Which is better for your polymer removal needs? This expert comparison will help you decide based on cleaning performance, part care, environmental impact, and operational efficiency.

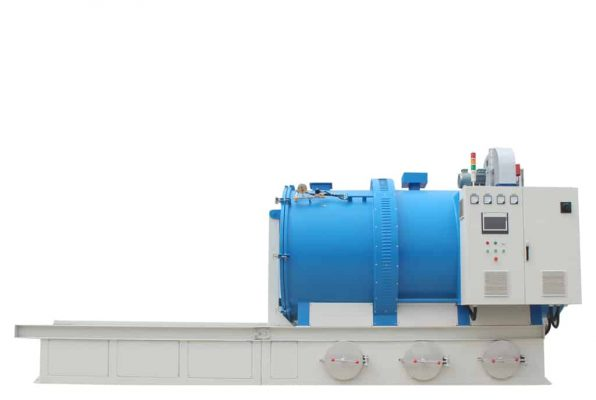

What Is a Vacuum Cleaning Furnace?

A vacuum cleaning furnace removes polymers through a precise multi-stage process. Components are placed in a vacuum chamber and heated gradually so that most of the polymer melts and drains off. At around 450°C, remaining residues decompose through pyrolysis in a controlled, oxygen-poor environment. The final traces of carbon are removed via gentle oxidation in the same chamber. This low-oxygen, stepwise method prevents uncontrolled burning, minimizes surface damage, and is safe for sensitive and complex parts.

​

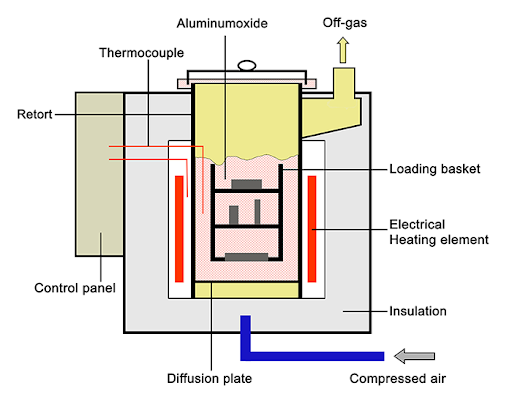

What Is Fluidized Bed Cleaning?

Fluidized bed cleaning uses high-temperature sand particles suspended by a flow of air or gas. Parts are immersed in the hot, constantly moving bed for rapid heat transfer. The polymer coating decomposes by thermal oxidation, and remaining inorganic residues are removed as the process completes. This forces gases and tiny particles through the part surfaces, producing extremely fast and even cleaning, even for intricate geometries.

​

Comparison Table

Feature	Vacuum Cleaning Furnace	Fluidized Bed Cleaning
Cleaning Mechanism	Pyrolysis under vacuum + oxidation	Pyrolysis/oxidation in air-suspended media
Temperature Control	Precise, gradual heating (to 450°C)	Rapid, uniform heat transfer
Suitable for Sensitive Parts	Excellent, minimal surface damage	May cause surface abrasion on delicate parts​
Cleaning Speed	Moderate (8–30 hours typical)	Very fast (minutes to hours)​
Polymer Removal Effectiveness	Highly effective, best for high-value tools	Highly effective, but risk of tool damage for complex parts​
Post-Cleaning Needs	Sometimes additional ultrasonics	May leave tool roughness, extra finishing may be needed​
Environmental & Operator Safety	Closed system, low emissions, safe	Minimal VOCs, but hot media handling required
Part/Tool Size Flexibility	Good for various sizes and shapes	Good, but best for robust geometries
Maintenance/Consumables	Low (mainly electrical)	Media must be replaced/filtered

Advantages and Use Cases

• Vacuum Cleaning Furnace:
  • Ideal for spinnerets, die heads, and filters with fine or delicate surfaces
  • Preferred where minimal wear and high part longevity are crucial
  • Suitable for all polymers, even halogenated or specialty plastics​
• Fluidized Bed Cleaning:
  • Fastest method for robust tooling and high-throughput operations
  • Excels at removing thick or heavy polymer build-up
  • Used for static mixers, pump parts, and non-return valves—especially when cleaning time and production speed are critical​

Which Should You Choose?

• Choose Vacuum Cleaning Furnace if:
  • Your parts are delicate, high-value, or have complex geometry
  • You require gentle, residue-free cleaning with low risk of damage
  • Environmental safety and controlled emissions are top priorities
• Choose Fluidized Bed Cleaning if:
  • You need to clean durable, simple-shaped tools in the shortest time
  • Your process can tolerate some surface wear or you perform regular refinishing
  • Fast turnaround and minimal downtime are paramount

Conclusion

Both vacuum cleaning furnaces and fluidized bed systems are state-of-the-art technologies for polymer removal. The best choice depends on your specific application, budget, and tool requirements. If you handle a mix of complex and robust components, combining both methods in your facility may deliver optimal results for every part and production challenge.​
